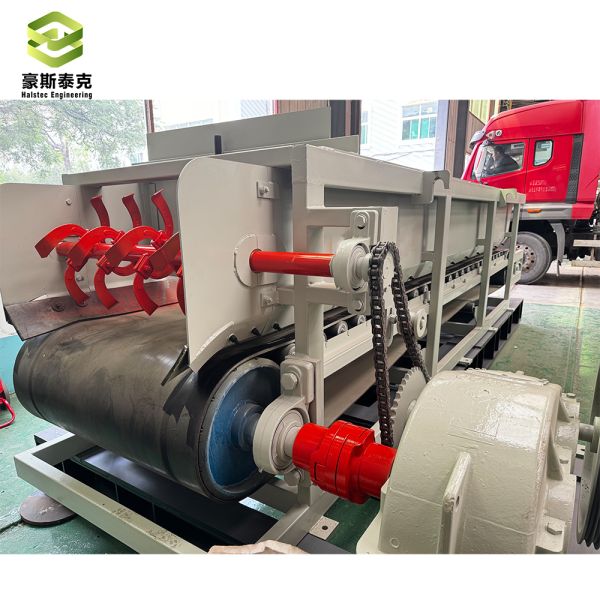

Product Description:
The box feeder is a continuous feeding device that integrates material storage, buffering, and quantitative conveying. It is primarily used to solve the problem of uniform feeding of bulk materials and is widely applicable to multiple industrial fields such as mining, building materials, brick and tile, chemical, and coal. It can efficiently process various bulk materials (moisture content ≤20%) such as clay, fly ash, coal gangue, shale, and coal, providing a stable and precise material supply for subsequent crushing, mixing, and molding processes. It is an indispensable key auxiliary equipment at the front end of the production line.
Features:
- Precise metering and stable feeding: The box-type storage design effectively buffers incoming material fluctuations, and the uniform speed conveying combined with a dual adjustment mechanism ensures minimal fluctuations in feed flow, guaranteeing the stability of subsequent processes and product quality.
- Flexible adjustment and wide adaptability: The gate height can be adjusted manually or electrically, and the frequency converter speed regulation can flexibly adjust the production capacity according to production needs. It can handle various bulk materials such as powder, lumps, and viscous materials. Replacing the feed bar can adapt to hard or highly plastic materials.
- Environmentally friendly, low consumption, safe and reliable: The enclosed box effectively controls dust diffusion, meeting industrial environmental protection requirements; low operating power consumption, significant energy-saving effect, high motor protection level, safe operation, and low failure rate.
- Robust and durable, easy maintenance: The frame is firmly welded, and the conveying components are made of wear-resistant materials, resisting impact and wear, extending the service life of the equipment; the simple structural design makes it easy to disassemble and maintain, reducing downtime for maintenance.
- Easy installation and low civil engineering requirements: The integrated structural design allows for direct floor installation, eliminating the need for complex civil engineering, significantly reducing installation costs and construction time.
Technical Parameters:
| Use For |
Brick Factory |
| Power |
7.5kw |
| Feature |
Easy Operation |
| Structure |
Belt, Frame, Roller |
| Name |
Box Feeder |
| Certification |
ISO9001 |
| Capacity |
30-70m3/hr |
| Environmental |
Friendly |
| Control System |
Automatic |
Working Principle:
After the equipment starts, the drive motor drives the conveyor belt or chain plate to rotate at a constant speed via the reducer. The material enters the storage box through the feed inlet, forming a stable material layer inside the box, avoiding the impact of material fluctuations on feeding accuracy. By adjusting the gate opening, the material layer thickness can be precisely controlled. Combined with the frequency conversion speed regulation function, the conveying speed can be flexibly adjusted, ultimately achieving continuous, uniform, and quantitative feeding within the range of 0.6–80 m³/h. At the same time, the material feeding device works synchronously to crush soft, large pieces of material, ensuring that the material is evenly distributed on the conveying components and efficiently transported to subsequent equipment. It can also realize the proportional mixing of mud and internal combustion materials to meet different production ratio requirements.
Product Advantages:
Compared to traditional feeding equipment, this product has both storage and feeding functions, eliminating the need for additional storage devices and saving space and costs; the dual adjustment mechanism ensures higher feeding accuracy and adapts to different production capacity requirements; the enclosed design is more environmentally friendly, wear-resistant parts extend service life, and maintenance costs are lower, meeting the needs of long-term continuous production and providing a reliable guarantee for the efficient and stable operation of industrial production lines.
Applications:
Widely used in industries such as brick and tile factories, ceramsite factories, mining, metallurgy, chemical industry, coal processing, and building materials production, as a front-end feeding device in the production line, it is mainly used to provide continuous and uniform material supply to subsequent equipment such as crushers, mixers, extruders, and conveyors. It is suitable for quantitative feeding and batching of various bulk materials, effectively improving the automation level and production efficiency of the production line and reducing the intensity of manual operation.
